When it comes to maximizing off-road performance, articulation, and axle control, your Jeep’s suspension setup is critical. One of the most advanced systems you’ll hear about in high-end builds is the double triangulated 4-link suspension. But what exactly is it, and why do serious Jeep builders choose it?
Let’s break it down.

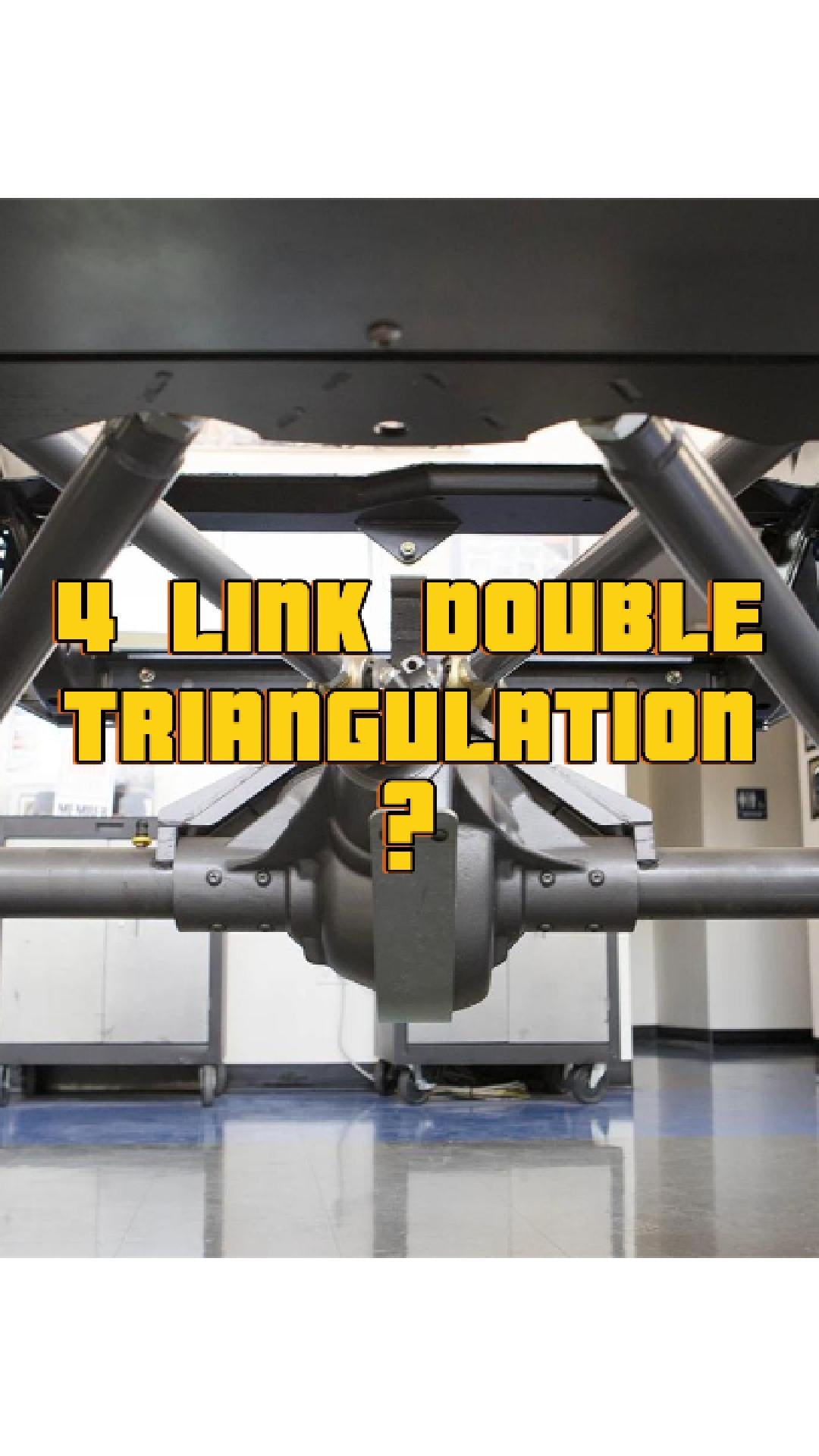

What Is a Double Triangulated 4-Link Suspension?
A double triangulated 4-link uses four control arms—two upper and two lower—but unlike other setups, both sets of links are angled inward toward the center of the vehicle.
This creates full triangulation, which eliminates the need for a track bar by naturally controlling side-to-side axle movement.
It’s a design commonly found in rear suspensions of dedicated off-road rigs and custom builds.
What Does a Double Triangulated 4-Link Do?
This system precisely controls axle movement throughout suspension travel. It manages:
- Forward and backward axle positioning
- Axle rotation (pinion angle)
- Complete lateral (side-to-side) stability without a track bar
- Maximum articulation and flex
Because of its geometry, it keeps the axle centered while allowing it to move freely over extreme terrain.
Why Jeep Owners Upgrade to a Double Triangulated 4-Link
This setup is popular in serious off-road and rock-crawling builds.
Here’s why:
No Track Bar Needed:
Triangulated links control lateral movement, simplifying the system and removing a common limitation.
Maximum Articulation:
Allows extreme suspension flex, keeping tires in contact with the ground on challenging terrain.
Superior Axle Control:
Provides consistent and predictable axle positioning under load.
High Strength and Durability:
Designed for aggressive off-road use, large tires, and heavy-duty applications.
Double Triangulated vs Other Suspension Systems
Here’s how it compares to other common setups:
Vs Parallel 4-Link:
- Eliminates track bar
- Better lateral stability
- More complex fabrication and setup
Vs Semi-Triangulated 4-Link:
- Full triangulation (upper and lower links)
- Greater articulation potential
- Less compromise, but harder to package
This makes it ideal for dedicated off-road rigs rather than daily drivers.
Are There Any Downsides?
While highly capable, this setup comes with some trade-offs:
- More complex design and fabrication
- Requires precise geometry for proper performance
- Limited use in front suspensions due to steering constraints
- Typically not as street-friendly as simpler systems
Because of this, it’s most commonly used in rear suspensions of purpose-built rigs.
Is It Right for Your Jeep?
If your Jeep is built primarily for off-road use—especially rock crawling or extreme trails—a double triangulated 4-link is one of the best-performing setups available.
However, for daily driving or simpler builds, other systems may be more practical.
"Shop Suspension"
Final Thoughts
A double triangulated 4-link suspension is the ultimate choice for Jeep owners seeking maximum articulation, control, and off-road capability. By eliminating the track bar and fully controlling axle movement through link geometry, it delivers unmatched performance on the toughest terrain—making it a top choice for serious builders and enthusiasts.
